CM Series Indoor LED Screen with Oxidation-Resistant Die-Cast Aluminum & Direct Curved Combination 14-16 Bit Grey Level
รายละเอียดสินค้า:
| สถานที่กำเนิด: | จีน |
| ชื่อแบรนด์: | Charming |
| ได้รับการรับรอง: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| หมายเลขรุ่น: | หน้า 3.91 |
การชำระเงิน:
| จำนวนสั่งซื้อขั้นต่ำ: | 2 ชิ้น |
|---|---|
| ราคา: | โปร่ง |
| รายละเอียดการบรรจุ: | กล่องกระดาษแข็ง, กล่องไม้, กล่องเครื่องบิน |
| เวลาการส่งมอบ: | 10 วันทำการหลังจากชำระเงิน |
| เงื่อนไขการชำระเงิน: | L/C, T/T, Western Union, Paypal, Cash |
| สามารถในการผลิต: | 500 ชิ้นต่อสัปดาห์ |
|
ข้อมูลรายละเอียด |
|||
| ระดับสีเทา: | 14-16 บิต | อุณหภูมิในการทำงาน: | -20 ~ 40 °C |
|---|---|---|---|
| ความชื้นในการทำงาน: | 10%~90%RH | ความสว่าง (CD/m2): | 600cd/ตร.ม |
| วัสดุตู้: | อลูมิเนียมอัลลอยด์ | แรงดันใช้งาน: | AC 110V/220V, ± 15% |
| มุมมอง: | 120° | ช่วงชีวิต: | ช่วงชีวิต |
รายละเอียดสินค้า
CM Series Indoor Screen – Oxidation‑Resistant Die‑Cast Aluminum & Direct Curved Combination Without Changing Locks
Product Overview
CM Series Indoor Screen - Oxidation‑Resistant Die‑Cast Aluminum & Direct Curved Combination Without Changing Locks
Product Features
- Aluminum alloy cabinet
- Precise splicing
- Ultra‑thin thickness
- Lightweight design
- Truss connection keyhole
- Ergonomic construction
- Flexible assembly
- Corner & curved cabinet ready
- Die‑cast aluminum process
Technical Specifications
| Type Number | P2.604 | P2.976 | P3.91 |
|---|---|---|---|
| Dimension (MM) | 500x500x79MM | ||
| Max. Power (W) | 100W | ||
| LED Standard | SMD1515 | SMD1515 | SMD2020 |
| Refresh Rate (Hz) | 7600Hz | 7680Hz | 1920/7680Hz |
| Pixel Pitch (MM) | 2.604 | 2.976 | 3.91 |
| Scan Mode | 1/32 Scan | 1/21 Scan | 1/16 Scan |
| Brightness (CD/m²) | ≥600 CD/㎡ | ||
| Viewing Angle | 120° | ||

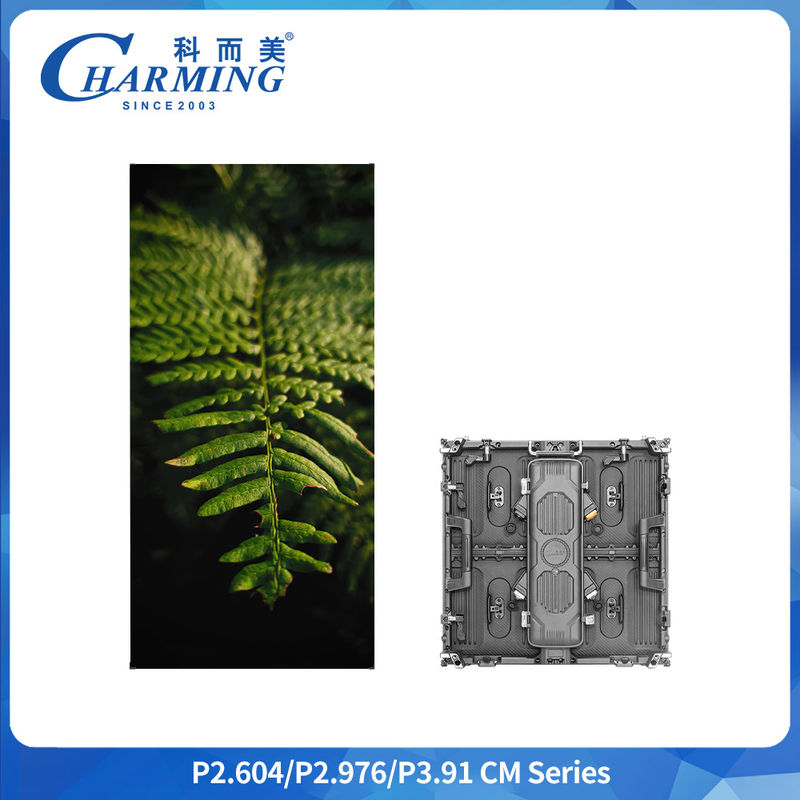

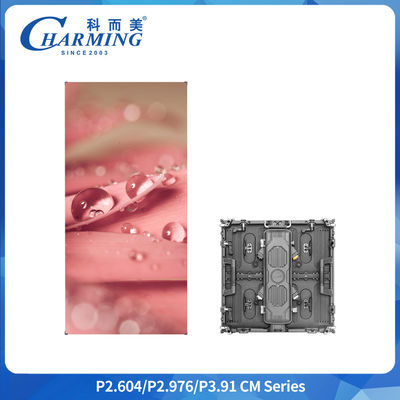

Product Images
Packaging Details
We offer multiple packaging options including carton cases, wooden cases, and flight cases. Different products are configured with appropriate packaging to ensure optimal screen protection during transport.
