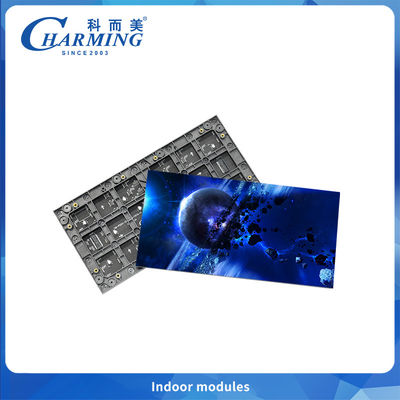

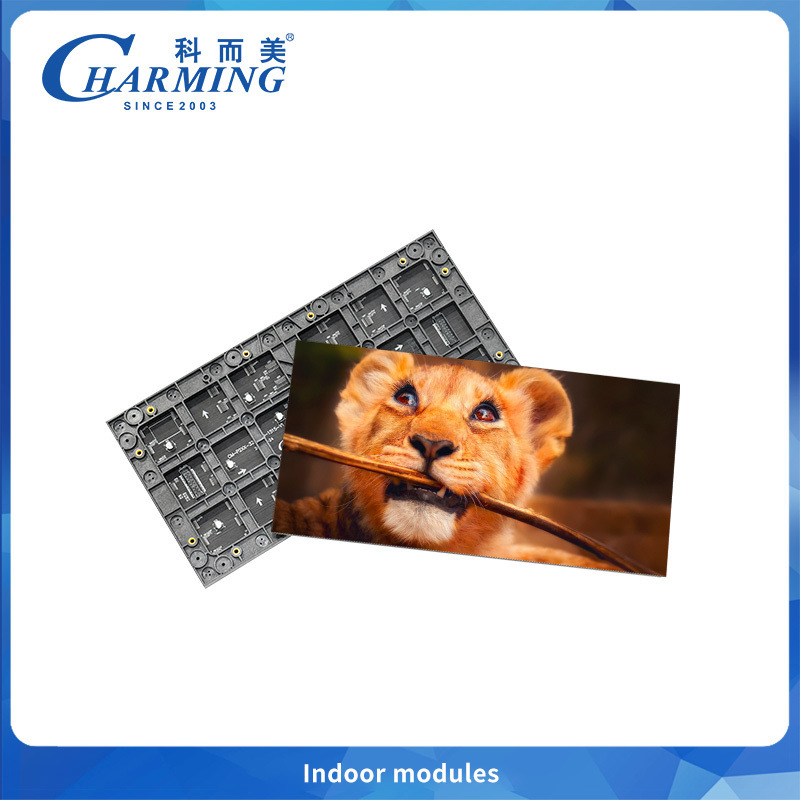

Advertising HD Screen Small pixel Pitch LED Wall Mounted Display Indoor Digital LED Display P1.86 P2 Office Led Screen
รายละเอียดสินค้า:
| สถานที่กำเนิด: | ไชน่า..· |
| ชื่อแบรนด์: | Charmingled..· |
| ได้รับการรับรอง: | CE, ROHS, LVD, EMC, CB, BIS, UL..· |
| หมายเลขรุ่น: | P1.86 P2 P2.22 P2.5..· |
การชำระเงิน:
| จำนวนสั่งซื้อขั้นต่ำ: | 10 ชิ้น..· |
|---|---|
| ราคา: | Negotiable..· |
| รายละเอียดการบรรจุ: | กล่องกระดาษ, ลังไม้, กระเป๋าเดินทาง..· |
| เวลาการส่งมอบ: | 30 วันทำการหลังจากชำระเงิน.. · |
| เงื่อนไขการชำระเงิน: | L/C, T/T, Western Union, Paypal, Cash |
| สามารถในการผลิต: | 100,000 ชิ้นต่อสัปดาห์.. · |
|
ข้อมูลรายละเอียด |
|||
| ช่วงชีวิต·: | ≥50000ชั่วโมง..· | ระดับสีเทา·: | 14-16 บิต..· |
|---|---|---|---|
| อัตราการรีเฟรช (Hz): | 7680Hz/3840Hz/1920Hz..· | อุณหภูมิในการทำงาน·: | -20~50°C..· |
| ความชื้นในการทำงาน·: | 10%~90%RH..· | แรงดันใช้งาน·: | กระแสตรง 5V..· |
| เน้น: | indoor LED wall display P1.86,office LED screen P2,HD digital LED display wall mounted |
||
รายละเอียดสินค้า
Charming Co., Ltd. has consistently demonstrated its commitment to pioneering technology and reliable service in the entertainment lighting and LED sector.
Since revolutionizing the industry in 2003 with the first LED display for entertainment use, we have maintained our position at the forefront of market developments. Our efforts have been rewarded with a reputation as one of China's most satisfactory brands in entertainment LED.
We have secured nearly 100 patents and possess robust certifications including ISO9001, CE, CCC, CB, ROHS, and SASO, underscoring our dedication to quality and safety.
In our pursuit of "Charming Achieve Beauty," we have established a 10,000+ sqm manufacturing base equipped with an international-standard, fully automated production line. Our 22-year proven track record is demonstrated through successful partnerships with clients in over 150 countries and regions.
| Parameters | SP2 | SP2.22 | SP2.5 | SP3 | SP4 (256x128) | SP4 (256x256) |
|---|---|---|---|---|---|---|
| Type Number..` | SP2..` | SP2.22..` | SP2.5..` | SP3..` | SP4..` | SP4..` |
| Dimension (MM)..` | 320x160..` | 320x160..` | 320x160..` | 192x192` | 256x128` | 256x256..` |
| Pixel Pitch (MM).. | 2 | 2.22..` | 2.5..` | 3..` | 4..` | 4..` |
| LED Standard.. | SMD1515..` | SMD2020..` | SMD2020..` | SMD2020..` | SMD2020..` | SMD2020..` |
| Scan Mode.. | 1/40 Scan..` | 1/36 Scan` | 1/32 Scan..` | 1/32 Scan` | 1/32 Scan..` | 1/32 Scan..` |
| Pixel Density (Dot/m²).. | 250000..` | 202500` | 160000..` | 111111` | 62500..` | 62500.. |
| Module Max.Power (W).. | 22..` | 20..` | 24..` | 10` | 5..` | 10..` |
| Best Viewing Distance (M).. | ≥2.5..` | ≥2.5..` | ≥2.5..` | ≥3` | ≥4..` | ≥4..` |
| Refresh Rate (Hz).. | 7680..` | 3840/1920..` | 3840/1920..` | 3840/1920..` | 3840/1920..` | 3840/1920..` |
| Brightness (CD/m²).. | 800..` | ≥700..` | ≥800..` | ≥600..` | ≥400..` | ≥400..` |
| Viewing Angle.. | 120°..` | 120°..` | 120°.. | 120°.. | 120°.. | 120°.. |
| Protection Level.. | IP42..` | IP42.. | IP42.. | IP42.. | IP42.. | IP42.. |
| Grey Level.. | 14-16 bit..` | 14-16 bit.. | 14-16 bit.. | 14-16 bit.. | 14-16 bit.. | 14-16 bit.. |
| Working Temperature.. | -20 ~ 50℃..`` | -20 ~ 50℃..` | -20 ~ 50℃.. | -20 ~ 50℃.. | -20 ~ 50℃.. | -20 ~ 50℃.. |
| Working Humidity.. | 10% ~ 90%RH.. | 10% ~ 90%RH..` | 10% ~ 90%RH.. | 10% ~ 90%RH.. | 10% ~ 90%RH.. | 10% ~ 90%RH.. |
| Life Span.. | ≥50000 Hours.. | ≥50000 Hours..` | ≥50000 Hours..` | ≥50000 Hours..` | ≥50000 Hours..` | ≥50000 Hours..` |
| Working Voltage.. | DC 5V.. | DC 5V..` | DC 5V..` | DC 5V..` | DC 5V..` | DC 5V..` |
- 2-Year Full Warranty: Free replacement or repair for any defective displays, modules, or parts
- Lifetime Maintenance: Only material costs apply after warranty period
- Free Technical Training: Includes hands-on operation & maintenance training
- Complete Documentation: Operation manuals, software, test reports, CAD drawings
- On-site technical support (available upon request)
- Remote troubleshooting assistance
- Regular system maintenance recommendations
- Software/firmware updates
- Spare parts supply chain support
Can I order samples for testing?
Yes, we welcome sample orders for both LED modules and complete screens so you can evaluate quality firsthand.
What is the delivery time?
-
LED modules: 1–5 days
-
Complete screens (<100m²): within 15 working days
What warranty do you offer?
All products come with a comprehensive 2-year warranty.
How is the after-sales service?
We offer 24/7 online support with dedicated hotlines to promptly handle feedback and technical issues.
Can we customize display sizes?
Display sizes are customized based on standard module and cabinet dimensions to ensure structural and performance integrity.
How do we install the display?
We provide detailed CAD drawings and remote installation guidance via TeamViewer.
What shipping methods are available?
Sea freight is recommended for cost efficiency, while air shipping is available for urgent needs.
What payment methods are accepted?
We accept T/T and Western Union, and highly recommend Ali Trade Assurance for transaction security.
