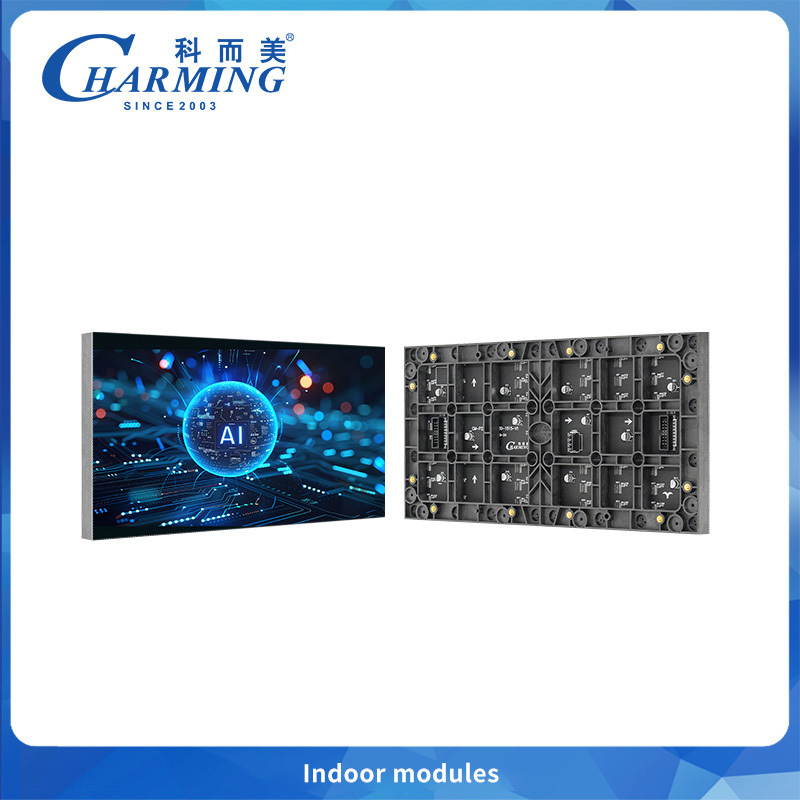

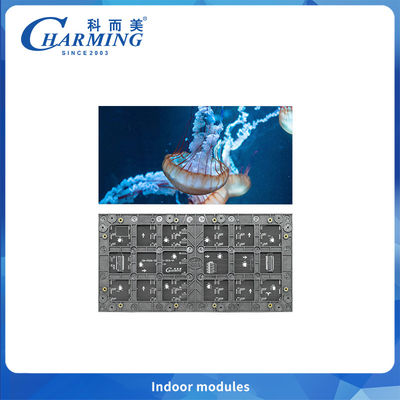

The First P2.22 to Combine 202.5K Pixel Density with 700 Nits Brightness for Premium Clarity

รายละเอียดสินค้า:

สถานที่กำเนิด: จีน
ชื่อแบรนด์: Charming
ได้รับการรับรอง: CE,ROHS,LVD,EMC,CB,BIS,UL
หมายเลขรุ่น: หน้า 2.22

การชำระเงิน:

จำนวนสั่งซื้อขั้นต่ำ: 10 ชิ้น
ราคา: โปร่ง
รายละเอียดการบรรจุ: กล่องกล่อง, กล่องไม้, เคสเที่ยวบิน
เวลาการส่งมอบ: 7 วันทำการหลังการชำระเงิน
เงื่อนไขการชำระเงิน: Western Union, L/C, T/T, PayPal, เงินสด
สามารถในการผลิต: 10000 ชิ้นต่อสัปดาห์
ราคาถูกที่สุด ติดต่อ

ข้อมูลรายละเอียด

มิติ (มม.): 320*160 มม. ความสว่าง (ซีดี / ): >700 ซีดี/ตรม
ความหนาแน่นของพิกเซล (จุด/㎡): 202500ดอท/ตารางเมตร ระดับการป้องกัน: IP42
ระดับสีเทา: 14-16 บิต มาตรฐาน LED: SMD2020
โหมดสแกน: 1/36สแกน โมดูลพลังงานสูงสุด (W): DC 5V
ช่วงชีวิต: 100,000 ชั่วโมง
เน้น:

P2.22 LED video wall display

,

202.5K pixel density LED display

,

700 nits brightness video wall

รายละเอียดสินค้า

The First P2.22 to Combine 202.5K Pixel Density with 700 Nits Brightness for Premium Clarity

Production Detail


The First P2.22 to Combine 202.5K Pixel Density with 700 Nits Brightness for Premium Clarity 0



Specification


Type Number P2.22
Dim ension(MM) 320*160MM
Module Maximum power(w) 20W
Best Viewing Distance(M) ≥2.2M
LED Standard SMD2020
Scan Mode 1/36Scan
Pixel Density(Dot/m²) 202500Dot/m²
Refresh Rate(Hz)
7680Hz
Brightness(CD/ m²)
>700
Pixel Pitch(MM) 2.22
Protection Level
IP42
Grey Level
14-16bit
Working Temperature
-20~50°C
Working Humidity
10%~90%RH
Life Span
≥50000 Hours
Working Voltage
DC 5V



The First P2.22 to Combine 202.5K Pixel Density with 700 Nits Brightness for Premium Clarity 1The First P2.22 to Combine 202.5K Pixel Density with 700 Nits Brightness for Premium Clarity 2The First P2.22 to Combine 202.5K Pixel Density with 700 Nits Brightness for Premium Clarity 3The First P2.22 to Combine 202.5K Pixel Density with 700 Nits Brightness for Premium Clarity 4

Company profile

The First P2.22 to Combine 202.5K Pixel Density with 700 Nits Brightness for Premium Clarity 5

The First P2.22 to Combine 202.5K Pixel Density with 700 Nits Brightness for Premium Clarity 6

Certificate

The First P2.22 to Combine 202.5K Pixel Density with 700 Nits Brightness for Premium Clarity 7

Question



1: Do you accept sample orders?
We support sample orders for both LED modules and complete screens for quality inspection.

2: What's the production lead time?
Modules ship in 1-5 days; screens under 100㎡ deliver within 15 working days.

3: Quality guarantee?
All products come with 12-month warranty.

4: How to place an order?
Just tell us your screen size and application!

5: Most economical shipping method?
Air is faster but expensive; sea freight saves money!

6: Payment options?

Bank transfer accepted; payment recommended for security.Let me know if you'd like any adjustments to these versions!
